High precision 5 axis cnc milling machine VMC1160 vertical cnc machining center for sale

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Classic

Payment & Shipping Terms:

Price:	$27,999.00/Sets 1-2 Sets
Packaging Details:	The machine will be packed by the plywood case<br>High precision 5 axis cnc milling machine VMC1160 vertical cnc machining center for sale
Supply Ability:	50 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Spindle Taper:	BT40
No. Of Spindles:	Single	Type:	VERTICAL
Dimension(LWH):	255032002650MM	Weight (T):	7.3 T
Table Size (mm):	1200x600	CNC Control System:	GSK, FANUC, MITSUBISHI, KND, Siemens
Number Of Axes:	3, 4, 5	Table Travel (X) (mm):	1100
Table Travel (Y) (mm):	600	Table Travel (Z) (mm):	600
Positioning Accuracy (mm):	±0.005	Repeatability (X/Y/Z) (mm):	±0.001
Range Of Spindle Speed(r.p.m):	1 - 8000 R.p.m	Spindle Motor Power(kW):	11
Max. Table Load(kg):	1000 Kg	Feed Speed(mm/min):	1 - 10000 Mm/min
Rapid Feed Speed(m/min):	20/20/15	Min. Time Of Tool Change(s):	2
Tool Magazine Capacity:	16, 24	Key Selling Points:	Automatic
Warranty:	2 Years	Voltage:	380/240V
Applicable Industries:	Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Other	Showroom Location:	Egypt, Canada, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri
Marketing Type:	New Product 2022	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	24 Months
Core Components:	Bearing	X/Y/Z Axis Servo Motor Torque:	10/10/15N.M
Automatic Tools Changer:	16 Armless Type(optional:24 Arm	Tool Length:	250/350mm
Tool Diameter:	100(Adjacent)/150(Apart)	Cutting Feed Speed:	10m/min
Machine Type:	CNC Vertical Machining Center	Product Name:	3-axis Vertical Cnc Machining Center
Application:	Metal Machining	Product Type:	Metal Machining
Controlling Mode:	Fanuc Mitsubishi Siemens Gsk System	Port:	Qingdao Or Shanghai Port

Product Application

This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

Vertical machining center is mainly used for plate, plate, shell parts, mold and other high precision, working procedure, shape more complex parts, it can be finished in a clamping continuous milling, drilling, expansion, reaming, boring, tapping and two-dimensional three-dimensional curved surface, precise machining of the inclined plane, processing to realize programmed, shorten the production cycle, thus to make the good economic benefits.

Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional

Working table	Table size	1200×600mm
		T-slot	5-18-100mm
		Max loading capacity of table	1000kg
Travel	X,Y,Z axis travel	1100×600×600mm
		Distance from spindle nose to table	120-720mm
		Distance from spindle center to vertical guide way surface	600mm
Feed	Rapid movement speed X,Y,Z	24/24/24m/min
Feed		Feed rate of cutting X,Y,Z	1~10000mm/min
Three axis	X Y Z axis motor torque	23/23/23NM
		X Y Z axis linear guide rail width	45mm
		X Y Z lead screw size	4012
		X Y Z sliding block no.	6/4/6
Spindle	Spindle taper	BT40
		Spindle speed	8000rpm
		Spindle power	11kw
Tool magazine	Tools capacity	24T
		Max tool weight	8kg
		Max length	φ78/300mm
		Tool magazine type	Arm type
Precision	Positioning accuracy X/Y/Z	0.016mm
Precision		Repeated positioning accuracyX/Y/Z	0.006mm
Machine tool	Machine size	255032002650mm
		Casting material model	HT300
		Machine hardness	45rkc
		Machine weight	7300kg

Standard Accessories:

Serial number	Name	Specifications or markings	Quantity
1	Spring chuck handle	MAS BT40-ER32-100L	1
2	Spring chuck		1
3	Rivet	P40T-1-MAS403	1
4	Hook wrench		1
5	Allen wrenches		1
6	Adjustable horn and bolts		4

The functional parts table:

Serial number	Name	model	Origin	Quantity
1	Spindle unit	BT40	Taiwan posn	1
2	Pressed cylinder		Taiwan Haocheng	1
3	ATC	16	Taiwan okada	1
4	X Ball Screws		Taiwan Hiwin	1
5	y Ball Screws		Taiwan Hiwin	1
6	Z Ball Screws		Taiwan Hiwin	1
7	Screw bearings		china	3
8	guide	X, Y,Z all is ball line	Taiwan Hiwin	3
9	control system		Knd/gsk	1
10	Three axes Motor and drive		MAXSINE	1
11	Cooling the pump	PMY-25-5	china	1
12	Lubrication system	Single wire damping	Taiwan Hurun	1
13	Pneumatic system		Taiwan Airtac	1

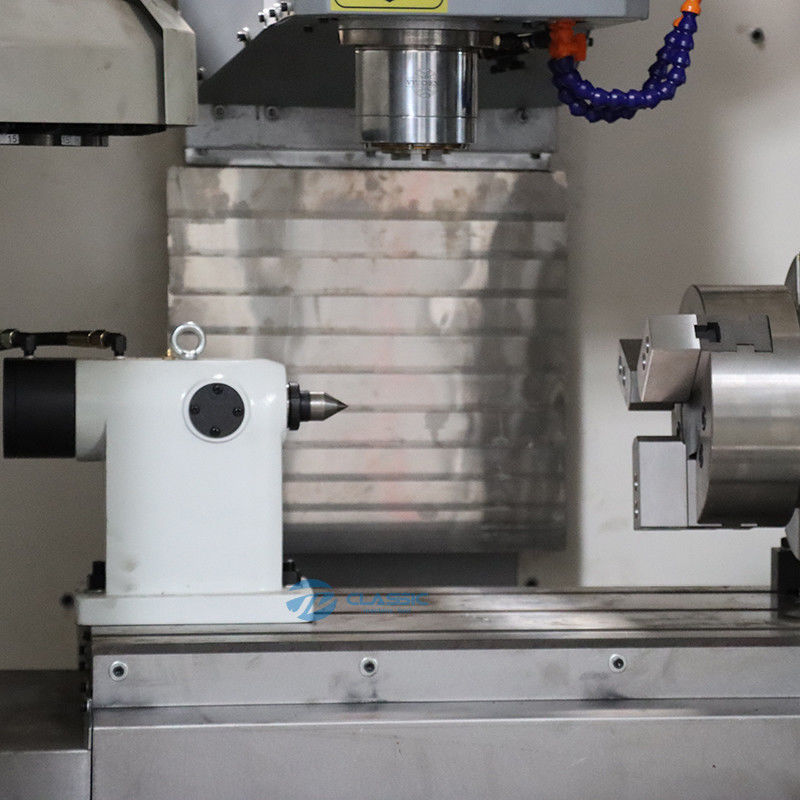

Detailed Images

Details Display

Recommend Products

Company Introduction

Packing&Shipping

FAQ

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.How can I choose the most suitable machines ?

A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard packed by iron pallets with plastic films
