| Place of Origin: | Shandong, China |
| Brand Name: | classiccnc |
| Price: | $26,000.00/Sets 1-2 Sets |
|---|---|
| Packaging Details: | The machine will be packed by the plywood case<br>Economical CNC vertical milling machine VMC1270 4 axis aluminum profile CNC machining center |
| Supply Ability: | 100 Set/Sets per Month |
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 3800*3000*2650 | Weight (T): | 10 T |

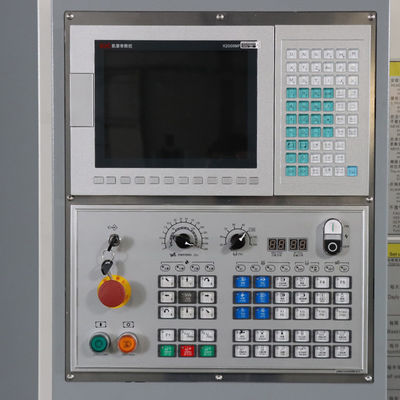

| Table Size (mm): | 1300x700 | CNC Control System: | GSK, FANUC, KND, Siemens |
| Number Of Axes: | 3, 4 | Table Travel (X) (mm): | 1200 |
| Table Travel (Y) (mm): | 700 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | 0.01 | Repeatability (X/Y/Z) (mm): | 0.004 |
| Range Of Spindle Speed(r.p.m): | 60 - 8000 R.p.m | Spindle Motor Power(kW): | 15 |
| Max. Table Load(kg): | 1000 Kg | Feed Speed(mm/min): | 10 - 10000 Mm/min |
| Rapid Feed Speed(m/min): | 24/24/18 | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Automatic |
| Warranty: | 2 Year | Voltage: | 380V |
| Applicable Industries: | Hotels | Showroom Location: | Egypt, Turkey, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Sri Lanka, Romania, Bangladesh, Sou |
| Marketing Type: | New Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | Bearing | T Slot: | 5-18*120mm |
| X/Y/Z Axis Rapid Feed: | 36/36/20m/min | Tool Length: | 250/350mm |
| Spindle Nose To Table Surface: | 180-780mm | Machine Type: | CNC Vertical Machining Center |
| Product Name: | 3-axis Vertical Cnc Machining Center | Application: | General Machinery Processing |
| Product Type: | Cnc 3 Axis Machine | Name: | Vertical Machine Center CNC Machine |
| Processing: | Metal Cutting Cnc Milling Machine | Port: | Qingdao Or Shanghai Port |
|
NC machining machines for sale message center
|
VMC1160
|

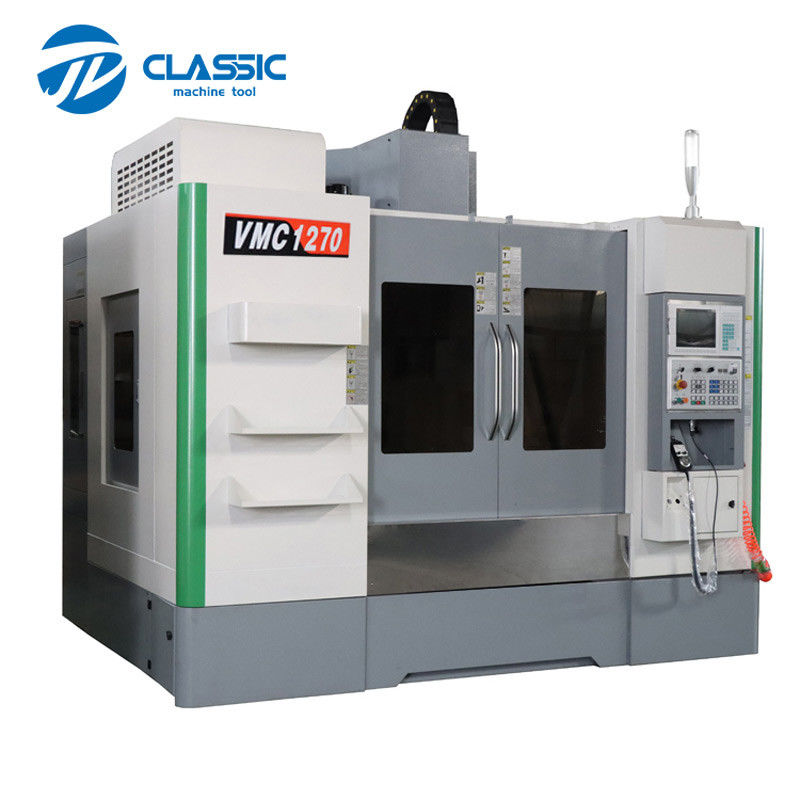

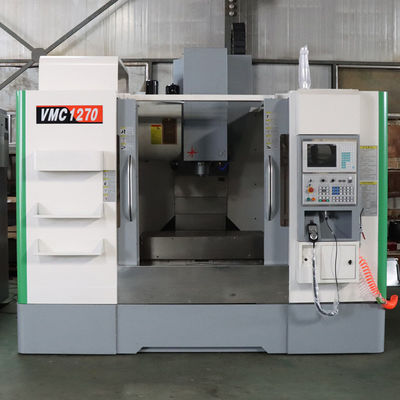

VMC1270
|
VMC1370
|
|
table size
|
1200*600mm
|
1360*700mm
|
1400*710mm
|
|
Max. table load
|
800KG
|
1000kg
|
1000kg
|
|
T slot qty-width*distance
|
5-18*120mm
|
5-18*122
|
5-18*152.5
|
|

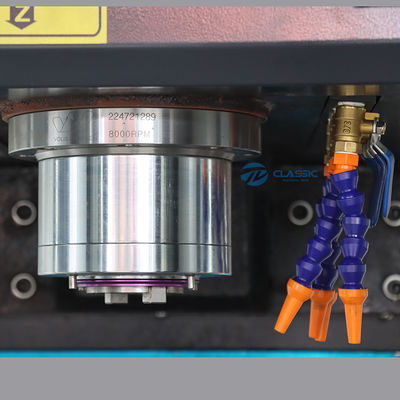

spindle speed
|
8000r/min
|
8000rpm
|
8000rpm
|
|
spindle nose to table surface
|
180-780mm
|
150-750mm
|
150-800mm
|
|
Spindle center to Column surface
|
600mm
|
785mm
|
785mm
|
|
Spindle taper
|
BT40
|
BT50
|
BT50
|
|
Main motor power
|
11/15kw
|
11/15kw
|
11/15kw
|
|
Three-axis servo motor power
|
2.5/2.5/2.5kw
|
4/4/4kw
|
4/4/4kw
|
|
X/Y/Z axis travel
|
1100/600/600mm
|
1200/700/600mm
|
1300/700/650mm
|
|
X/Y/Z axis rapid feed
|
20/20/15m/min
|
24/24/18m/min
|
15/15/15m/min
|
|

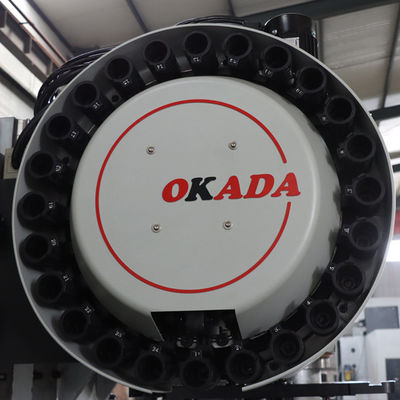

Tool changer type
Tools capacity |
drum/ hat type (arm type optional )
16/24 |
disc type
24 |
disc type
24 |
|
Max.tool(kinfe) weight
|
8kg
|
15kg
|
15kg
|
|
Repeat positioning accuracy
|
±0.004
|
±0.004mm
|
±0.004mm
|
|
Net weight
|
7000kg
|
10500kg
|
11000kg
|
|
Overall dimension
|
3340*2800*2700mm
|
3800*3000*2650mm
|
3900*3060*2650mm
|
