Place of Origin: | Shandong, China |
Brand Name: | Classic |
Price: | $30,000.00/Sets 1-2 Sets |
---|---|
Packaging Details: | The machine will be packed by the plywood case<br>CNC 5-axis Taiwan vertical machining center vmc850 precision CNC vertical milling machine |
Supply Ability: | 50 Set/Sets per Month |
Condition: | New | Spindle Taper: | BT40 |
---|---|---|---|
No. Of Spindles: | Twin | Type: | VERTICAL |
Dimension(L*W*H): | 2750x2300x2300MM | Weight (T): | 5.2 T |
Table Size (mm): | 1000x500 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
Number Of Axes: | 3, 4, 5 | Table Travel (X) (mm): | 800 |
Table Travel (Y) (mm): | 500 | Table Travel (Z) (mm): | 500 |
Positioning Accuracy (mm): | 0.001 | Repeatability (X/Y/Z) (mm): | 0.004 |
Range Of Spindle Speed(r.p.m): | 1 - 8000 R.p.m | Spindle Motor Power(kW): | 7.5 |
Max. Table Load(kg): | 500 Kg | Feed Speed(mm/min): | 1 - 8000 Mm/min |
Rapid Feed Speed(m/min): | 20/20/15 | Min. Time Of Tool Change(s): | 2 |
Tool Magazine Capacity: | 16, 24 | Key Selling Points: | Automatic |
Warranty: | 2 Years | Voltage: | 380V 240V |
Applicable Industries: | Hotels, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge |
Marketing Type: | New Product 2021 | Machinery Test Report: | Provided |
Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 2 Years |
Core Components: | Bearing | X/Y/Z Axis Servo Motor Torque: | 10/10/15N.M |
Automatic Tools Changer: | 16 Armless Type(optional:24 Arm | Tool Length: | 250/350mm |
Tool Diameter: | 100(Adjacent)/150(Apart) | Cutting Feed Speed: | 10m/min |

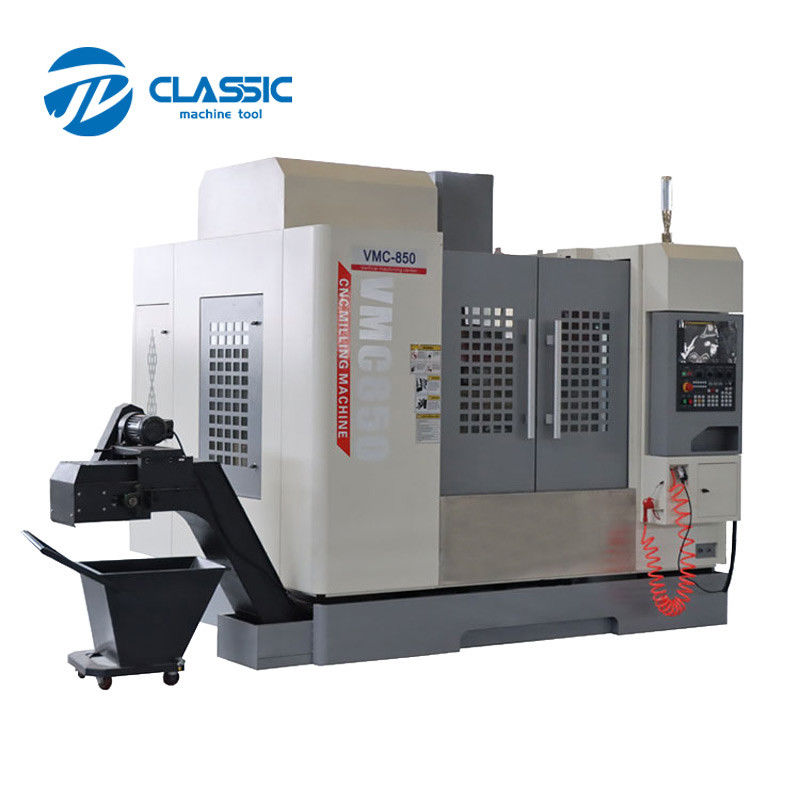

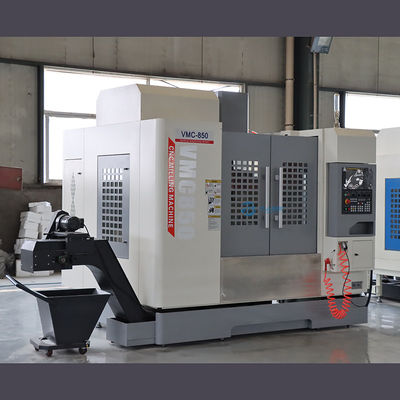

Machine Type: | CNC Vertical Machining Center | Product Name: | 3-axis Vertical Cnc Machining Center |
Application: | Metal Machining | Product Type: | Cnc 3 Axis Machine |
Controlling Mode: | Fanuc Mitsubishi Siemens Gsk System | Port: | Qingdao Or Shanghai Port |
Specificatioin | VMC850 |
X-axis travel | 800mm |
Y-axis travel | 500mm |
Z-axis travel | 500mm |
Spindl nose to table surface | 150-650mm |
Spindle center to column surface | 550mm |
Table size | 1000×500mm |
Max.loading | 500kg |
T-slot width | 18mm |
T-slot quantity | 5 |
Spindle taper | BT40 |
Spindle speed | 8000rpm |
Spindle motor | 7.5kw |
Max.tool dia | φ80/φ150mm |
Max.tool length | 200mm |
Max.tool weight | 8kg |
X、Y axis rapid feed | 24000mm |
Z axis rapid feed | 20000mm |
Cutting feed | 1-10000mm/min |
Position accuracy | ±0.01mm |
Repeat positioning accuracy | ±0.003/300mm |
Power device capacity | 15KVA |
Coolant system capacity | 200L |
Cooling pump power | 120W |
Cooling pump flow | 50L/min |
Coolant system rated head | 10m |
Using air pressure | 0.6MPa |
Dimensions | 2750×2300×2300mm |
Net weight | 5200Kg |
Serial number | Name | Specifications or markings | Quantity |
1 | Spring chuck handle | MAS BT40-ER32-100L | 1 |
2 | Spring chuck | 1 | |
3 | Rivet | P40T-1-MAS403 | 1 |
4 | Hook wrench | 1 | |
5 | Allen wrenches | 1 | |
6 | Adjustable horn and bolts | 4 |
Serial number | Name | model | Origin | Quantity |
1 | Spindle unit | BT40 | Taiwan posn | 1 |
2 | Pressed cylinder | Taiwan Haocheng | 1 | |

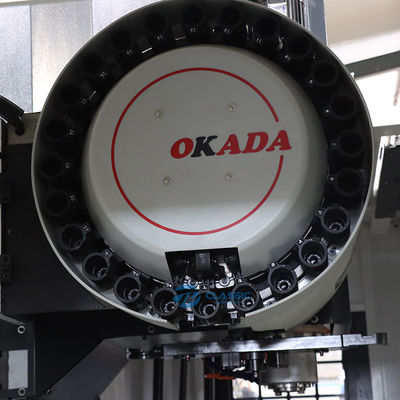

3 | ATC | 16 | Taiwan okada | 1 |
4 | X Ball Screws | Taiwan Hiwin | 1 | |
5 | y Ball Screws | Taiwan Hiwin | 1 | |
6 | Z Ball Screws | Taiwan Hiwin | 1 | |
7 | Screw bearings | china | 3 | |
8 | guide | X, Y,Z all is ball line | Taiwan Hiwin | 3 |

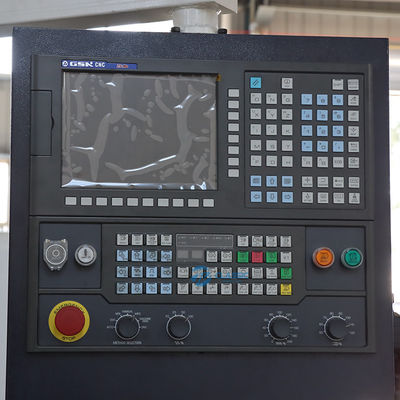

9 | control system | Knd/gsk | 1 | |
10 | Three axes Motor and drive | MAXSINE | 1 | |
11 | Cooling the pump | PMY-25-5 | china | 1 |

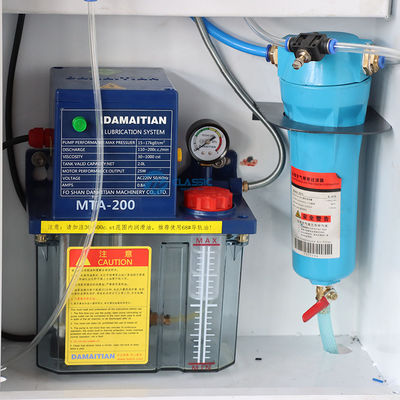

12 | Lubrication system | Single wire damping | Taiwan Hurun | 1 |
13 | Pneumatic system | Taiwan Airtac | 1 |
